7*7 316 Aircraft Grade Stainless Steel Cable for Safety Critical Applications
Descriptions
-
Made from 7×7 stranded 316 stainless steel, this cable offers excellent tensile strength and fatigue resistance, ideal for demanding safety-critical applications.
-
316 stainless steel provides exceptional resistance to saltwater, chemicals, and extreme environments, making it perfect for marine, aerospace, and industrial uses.
-
The 7×7 construction (7 strands of 7 wires) ensures a balance of flexibility and strength, suitable for dynamic loads, pulleys, and precision control systems.
-
Meets stringent aerospace and industrial standards for safety-critical applications, including rigging, lifelines, and mechanical linkages.
-
Ideal for sailboat rigging, suspension systems, medical devices, and architectural applications where reliability and corrosion resistance are paramount.
Technical Specification
| Construction | Diameter Before Coating (MM) | Diameter After Coating (MM) | Minimum Breaking Force (KN) | Reference Weight (KG/1000M) |
| AISI 304 06Cr19Ni10 | AISI 316 06Cr17Ni12Mo2 |
| 1×71×7 | 0.60 | 0.80 | 0.382 | 0.333 | 2.2 |
| 0.80 | 1.00 | 0.667 | 0.588 | 3.7 |
| 1.00 | 1.20 | 1 | 0.91 | 5.6 |
| 1.20 | 1.50 | 1.32 | 1.21 | 8.2 |
| 1.50 | 2.00 | 2.26 | 2.05 | 13.4 |
| 2.00 | 2.50 | 4.02 | 3.63 | 22.8 |
| 1×191×19 | 1.00 | 1.20 | 0.95 | 0.814 | 5.6 |
| 1.20 | 1.50 | 1.27 | 1.17 | 8.2 |
| 1.50 | 2.00 | 2.25 | 1.81 | 13.4 |
| 2.00 | 2.50 | 3.82 | 3.24 | 22.8 |
| 2.50 | 3.00 | 5.58 | 5.1 | 34.7 |
| 3.00 | 4.00 | 8.03 | 7.31 | 53.8 |
| 4.00 | 5.00 | 13.9 | 12.2 | 91.3 |
| 7×77×7 | 0.80 | 1.00 | 0.461 | 0.384 | 3.0 |
| 1.00 | 1.20 | 0.637 | 0.599 | 4.6 |
| 1.20 | 1.50 | 1.2 | 0.915 | 6.8 |
| 1.50 | 2.00 | 1.67 | 1.47 | 11.2 |
| 2.00 | 2.50 | 2.94 | 2.55 | 18.8 |
| 2.50 | 3.00 | 4.1 | 3.45 | 28.4 |
| 3.00 | 4.00 | 6.37 | 5.39 | 44.8 |
| 4.00 | 5.00 | 9.51 | 8.9 | 75.3 |
| 7×197×19 | 2.00 | 3.00 | 2.94 | 2.55 | 22.3 |
| 3.00 | 4.00 | 6.37 | 5.39 | 44.8 |
| 4.00 | 5.00 | 10.7 | 9.51 | 75.3 |
| 5.00 | 6.00 | 17.4 | 14.9 | 113.8 |
| 6.00 | 8.00 | 23.5 | 20.8 | 179.0 |
| 8.00 | 10.00 | 40.1 | 36.1 | 301.0 |
| 10.00 | 12.00 | 63 | 55 | 455.0 |
| 12.00 | 14.00 | 85.6 | 75 | 641.0 |
| 14.00 | 16.00 | 123 | 108 | 859.0 |

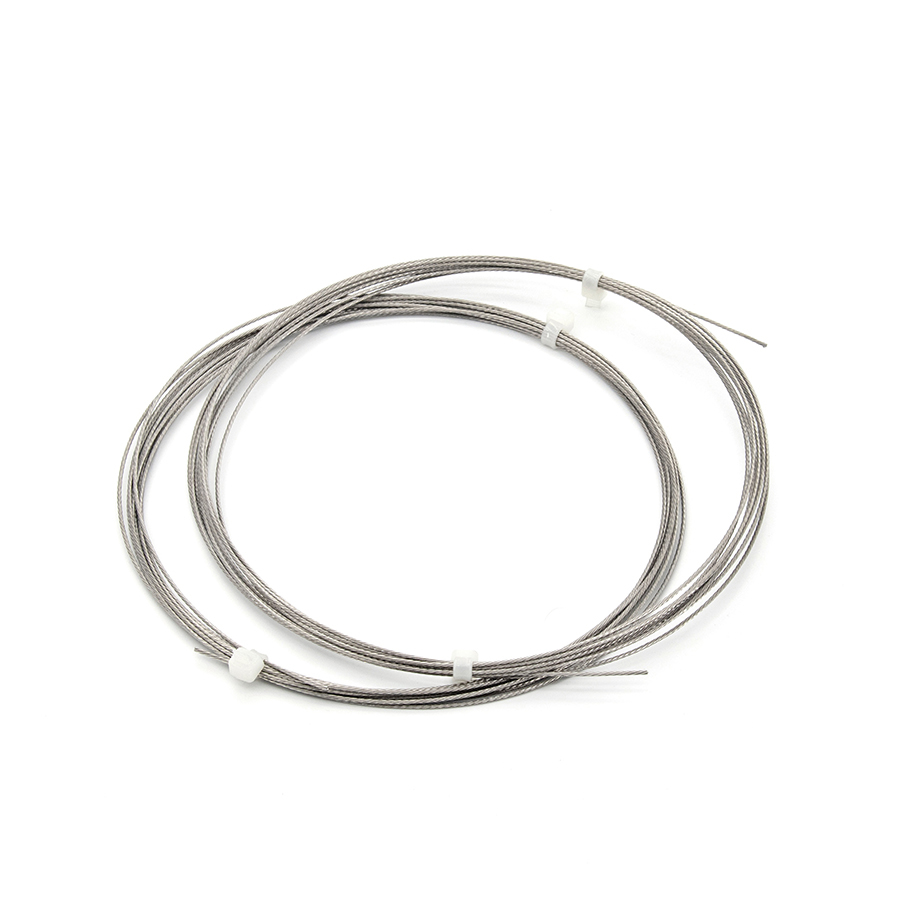

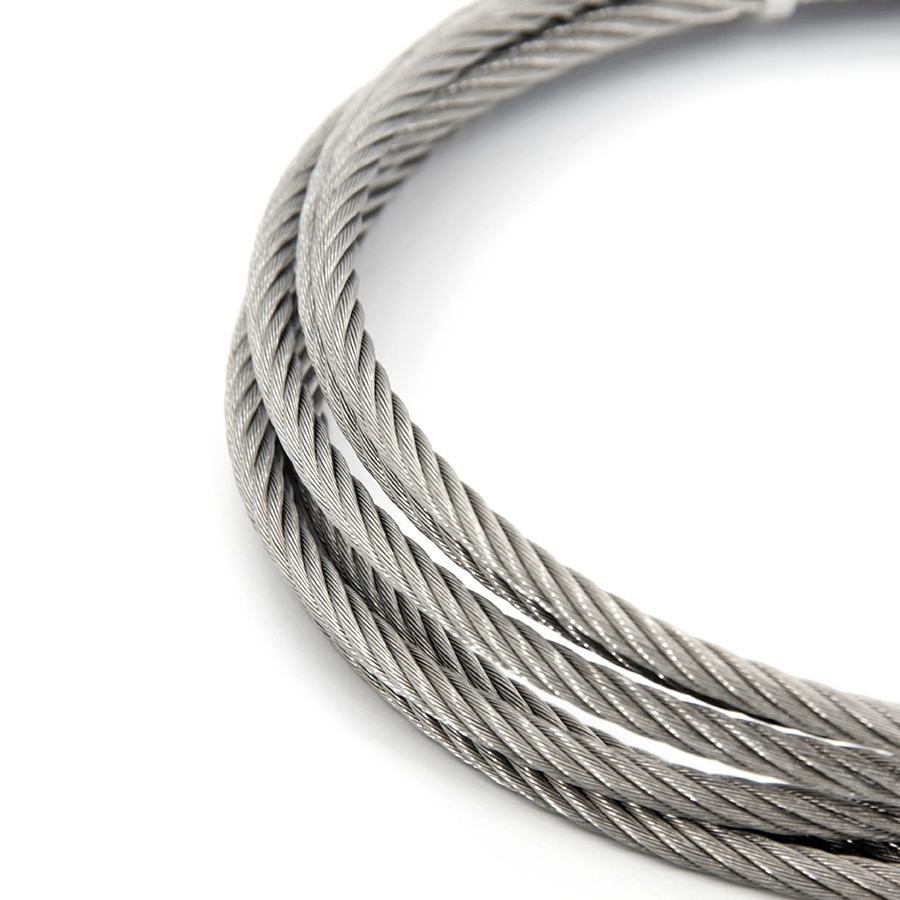

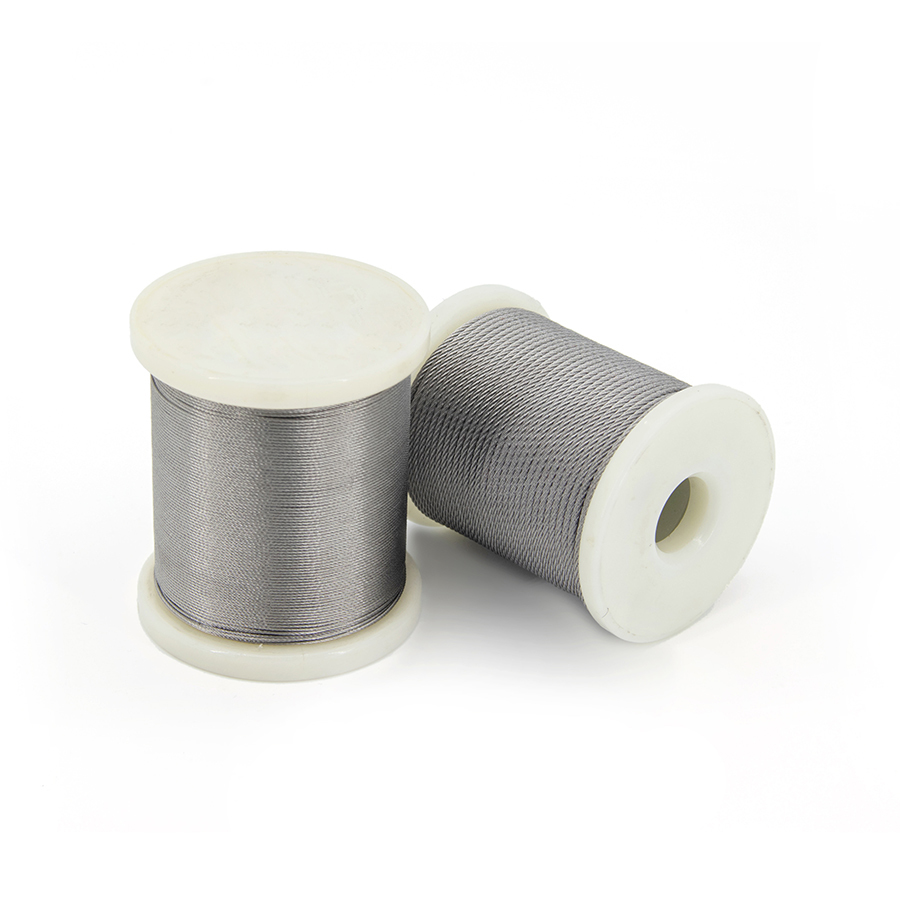

Details Photos
